Following sensors are typical examples of the AMITEQ products.
The sensor specifications as dimension, performance, and etc can be designed for each application.
|
|
|
|
Angular Sensor - Examples
|
|
|
|
|
INDUCTCODER® |
|
|
|
|
|
|
|
Winding Coil Type
|
 |
|
|
| Features: |
|
● High robustness against misalignment
|
|
ex. More than six times more robust than the conventional resolver
(ref. Comparison of Accuracy with φ37, 2x)
|
|
 |
|
● High Accuracy
|
|
|
ex. +/- 0.15 deg (mechanical)
|
|
|
● Design options
|
|
Winding coil type & Printed pattern coil type available
|
|
|
● Adoption results for automotive use
|
|
Adoption results for traction motor control of EV/HEV/PHEV applications, and for EPS motor control
|
|
|
|
|
|
|
PCB Coil Type
|
 |
|
|
|
|
|
|
|
Example of adoption results of
INDUCTCODER® for automotive use... |
|
 |
 |
 |
φ97, 6x for HEV
|
φ66, 4x for EV
|
φ140, 6x for HEV
|
|
|
|
|
Application example: |
|
|
| Motor control |
・ Traction motor for EV/HEV/PHEV
・ Generator for start-stop system
・ In-wheel motors for EV
・ DC brush-less motor for factory automation, etc.
|
|
|
 |
|
Offering any size and type of the angular sensor for angle and speed control. |
|
|
|
|
|
Specification example:
>> click here for the specification example
|
|
|
|
|
|
|
|
|
Segment Type Sensor |
|
|
|
|
|
|
|
|
|
| Features: |
|
● Applicable to large dia shaft
|
|
Space-saving segmented sensor head can be applied to the larger dia shaft.
ex. φ300 mm or larger
|
|
|
● Easy maintenance
|
|
No need to disassemble the shaft for small and segmental sensor head installation
|
|
|
● Design options
|
|
Winding coil type & Printed coil pattern type available
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Application example: |
|
|
|
|
Motor / Engine control |
|
 |
|
|
ex.
Installation on the large dia flywheel |
|
|
|
|
|
|
|
|
|
|
Multi-turn Absolute Sensor
(Signal converter embedded type) |
|
|
|
|
|
|
|
|
|
| Features: |
|
● Super-high resolution
|
|
|
|
● Wide absolute measurement angle
with no battery back-up
|
|
ex. 92160 deg fully absolute
Detecting mult-turn absolute rotation angle without battery back-up
|
|
|
● Compact package design with sensor electronics
|
|
|
|
● Heavy duty
|
|
|
|
|
|
|
|
|
Application example: |
|

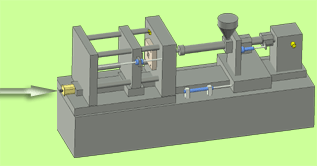

| Injector control system (Injection Molding Machine) |
Motor position/
speed control
(Absolute control)
|
 |
|
|
|
|
|
|
Specification example:
>> click here for the specification example
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
